Parça numaraları, teknik özellikler ve makine model numaraları referans amaçlıdır.
| METALON NO | MAKİNE MODEL | ORJİNAL NO | ÜRÜN ADI |
| ON03T1029 | HYUNDAI 210 | E161-3027RC | KAZMA UCU |
| ON03A2017 | HYUNDAI 210 | E161-3017 | ADAPTÖR |
| ON31P3009 | HYUNDAI 210 | PİM ( 19 X 98 ) | PİM-SEGMAN |
| ON03T1030 | HYUNDAI 210 YENİ TİP | 61Q6-31320RC | KAZMA UCU |
| ON03A2018 | HYUNDAI 210 | 61Q6-31320 | ADAPTÖR |
| ON31P3009 | HYUNDAI 210 | PİM ( 19 X 98 ) | PİM-SEGMAN |
| ON03T1033 | HYUNDAI 290 | 61N8-31310RC | KAZMA UCU |
| ON03A2019 | HYUNDAI 290 | E262-3027 | ADAPTÖR |
| ON31P3015 | HYUNDAI 290 | PİM ( 20 X 120 ) | PİM-SEGMAN |
| ON03T1036 | HYUNDAI 360 | 61NA-31310RC | KAZMA UCU |
| ON03A2021 | HYUNDAI 360 | 61NA31320 | ADAPTÖR |
| ON31P3024 | HYUNDAI 360 | PİM ( 25 X 150 ) | PİM-SEGMAN |

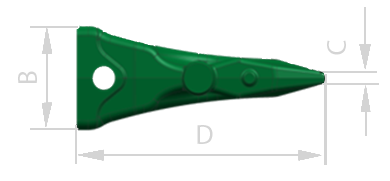

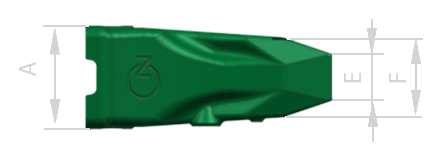

| METALON NO | MAKİNE MODEL | A | B | C | D | E | F |
| ON03T1029 | HYUNDAI 210 | 102 | 90 | 11 | 255 | 43 | 78 |
| ON03T1030 | HYUNDAI 210 YENİ TİP | 98 | 103 | 12 | 245 | 45 | 77 |
| ON03T1033 | HYUNDAI 290 | 120 | 127 | 15 | 280 | 50 | 89 |
| ON03T1036 | HYUNDAI 360 | 127 | 122 | 14 | 295 | 56 | 101 |

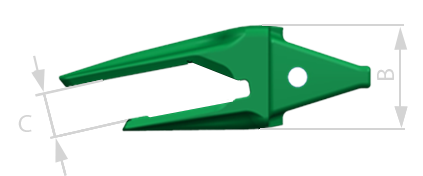

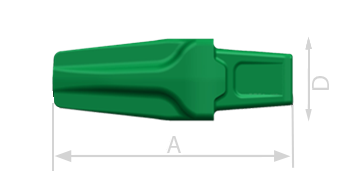

| METALON NO | MAKİNE MODEL | A | B | C | D |
| ON03A2017 | HYUNDAI 210 | 290 | 90 | 37 | 101 |
| ON03A2018 | HYUNDAI 210 | 320 | 105 | 38 | 97 |
| ON03A2019 | HYUNDAI 290 | 360 | 110 | 42 | 112 |
| ON03A2020 | HYUNDAI 290 | 380 | 124 | 42 | 113 |
| ON03A2021 | HYUNDAI 360 | 400 | 130 | 53 | 133 |
| METALON NO | MAKİNE MODEL | A | B | C |
| ON31P3009 | HYUNDAI 210 | 19 | 98 | |
| ON31S4005 | HYUNDAI 210 | 19 | ||
| ON31P3015 | HYUNDAI 290 | 20 | 120 | |
| ON31S4006 | HYUNDAI 290 | 20 | ||
| ON31P3024 | HYUNDAI 360 | 25 | 150 | |
| ON31S4010 | HYUNDAI 360 | 25 |
