Parça numaraları, teknik özellikler ve makine model numaraları referans amaçlıdır.
METALON NO | MAKİNE MODEL | ORJİNAL NO | ÜRÜN ADI |
ON04T1097 | CAT J 300 | 1U-3302RC | KAZMA UCU |
ON04A2070 | CAT J 300 | 3G-6304 | ADAPTÖR |
ON31P3006 | CAT J 300 | PİM ( 16 X 95 ) | PİM |
ON04T1193 | CAT J 550 | 9W-8552RC | KAZMA UCU |
ON04A2074 | CAT J 550 | 3G-9494 | ADAPTÖR |
ON31P3026 | CAT J 550 | PİM ( 26 X 165 ) | PİM |
ON04T1099 | CAT J 350 | 3352RC | KAZMA UCU |
ON04A2071 | CAT J 350 | 3G8354 | ADAPTÖR |
ON31P3009 | CAT J 350 | PİM ( 19 X 98 ) | PİM |
ON04T1103 | CAT J 460 | 9W-84452RC | KAZMA UCU |
ON04A2073 | CAT J 460 | 8E6464 | ADAPTÖR |
ON31P3021 | CAT J 460 | PİM ( 24 X 135 ) | PİM |

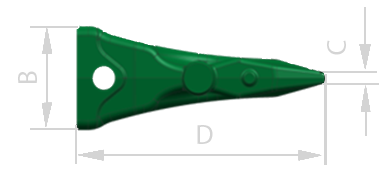

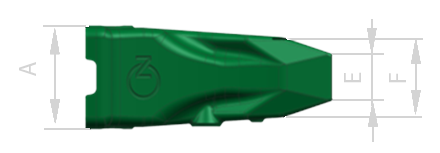

METALON NO | MAKİNE MODEL | A | B | C | D | E | F |
ON04T1097 | CAT J 300 | 86 | 99 | 11 | 235 | 43 | 71 |
ON04T1193 | CAT J 550 | 160 | 151 | 16 | 365 | 62 | 122 |
ON04T1099 | CAT J 350 | 100 | 111 | 12 | 275 | 49 | 94 |
ON04T1103 | CAT J 460 | 137 | 137 | 10 | 330 | 70 | 104 |

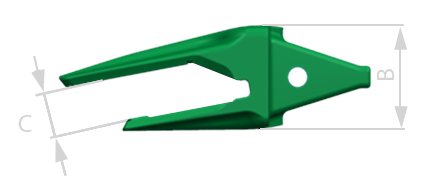

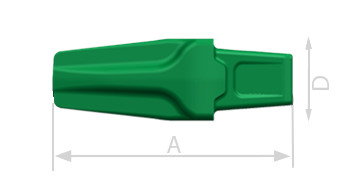

METALON NO | MAKİNE MODEL | A | B | C | D |
ON04A2070 | CAT J 300 | 300 | 100 | 37 | 82 |
ON04A2071 | CAT J 350 | 330 | 107 | 40 | 91 |
ON04A2072 | CTJ 400 | 390 | 120 | 47 | 90 |
ON04A2073 | CAT J 460 | 415 | 129 | 55 | 129 |
ON04A2074 | CAT J 550 | 510 | 125 | 63 | 120 |
METALON NO | MAKİNE MODEL | A | B | C |
ON31P3002 | CAT J 250 | 14 | 76 | |
ON31S4002 | CAT J 250 | 14 | ||
ON31P3006 | CAT J 300 | 16 | 95 | |
ON31S4003 | CAT J 300 | 16 | ||
ON31P3009 | CAT J 350 | 19 | 98 | |
ON31S4005 | CAT J 350 | 19 | ||
ON31P3017 | CAT J 400 | 20 | 135 | |
ON31S4006 | CAT J 400 | 20 | ||
ON31P3021 | CAT J 460 | 24 | 135 | |
ON31S4009 | CAT J 460 | 24 | ||
ON31P3026 | CAT J 550 | 26 | 165 | |
ON31S4011 | CAT J 550 | 26 |
