Parça numaraları, teknik özellikler ve makine model numaraları referans amaçlıdır.
METALON NO | MAKİNE MODEL | ORJİNAL NO | ÜRÜN ADI |
ON02T1215 | HİDROMEK 370 | HMK370AH | KAZMA UCU |
ON02A2015 | HİDROMEK 370- 50 mm | HMK370 | ADAPTÖR |
ON31P3020 | HİDROMEK 300 | PİM ( 23 X 130 ) | PİM |

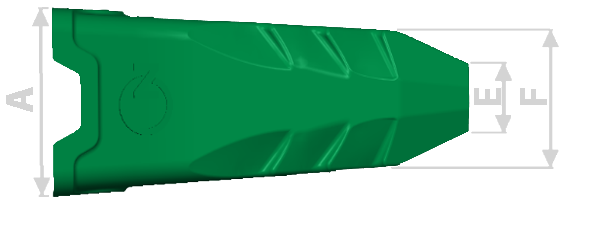

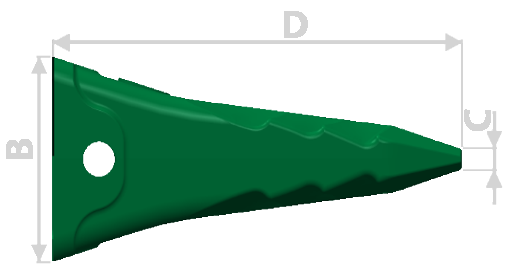

METALON NO | MAKİNE MODEL | A | B | C | D | E | F |
ON02T1215 | HİDROMEK 370 | 133 | 132 | 21 | 320 | 51 | 98 |

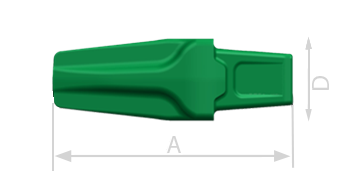

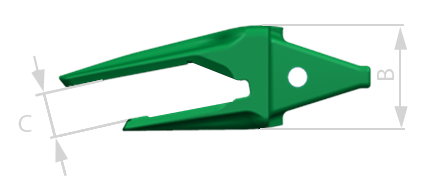

METALON NO | MAKİNE MODEL | A | B | C | D |
ON02A2015 | HİDROMEK 370- 50 mm | 395 | 144 | 52 | 128 |
ON02A2016 | HİDROMEK 370 -60 mm | 395 | 144 | 62 | 128 |
METALON NO | MAKİNE MODEL | A | B | C |
ON31P3020 | HİDROMEK 300 | 23 | 130 | |
ON31S4008 | HİDROMEK 300 | 23 | ||
ON31P3021 | HİDROMEK 370 | 24 | 135 | |
ON31S4009 | HİDROMEK 370 | 24 |
