Part numbers, specifications and machine model numbers are for reference purposes.
| METALON NO | MAKİNE MODEL | ORJİNAL NO | ÜRÜN ADI |
| ON03T1028 | HYUNDAI 210 | E161-3027ST | KAZMA UCU |
| ON03A2017 | HYUNDAI 210 | E161-3017 | ADAPTÖR |
| ON31P3009 | HYUNDAI 210 | PİM ( 19 X 98 ) | PİM |
| ON03T1035 | HYUNDAI 360 | 61NA-31310ST | KAZMA UCU |
| ON03A2021 | HYUNDAI 360 | 61NA31320 | ADAPTÖR |
| ON31P3024 | HYUNDAI 360 | PİM ( 25 X 150 ) | PİM |
| METALON NO | MAKİNE MODEL | A | B | C | D | E |
| ON03T1028 | HYUNDAI 210 | 98 | 92 | 14 | 220 | 84 |
| ON03T1035 | HYUNDAI 360 | 134 | 127 | 13 | 280 | 125 |

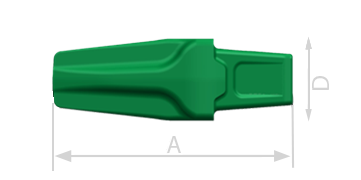

| METALON NO | MAKİNE MODELİ | A | B | C | D |
| ON03A2017 | HYUNDAI 210 | 290 | 90 | 37 | 101 |
| ON03A2019 | HYUNDAI 290 | 360 | 110 | 42 | 112 |
| ON03A2021 | HYUNDAI 360 | 400 | 130 | 53 | 133 |
| METALON NO | MAKİNE MODEL | A | B | C |
| ON31P3009 | HYUNDAI 210 | 19 | 98 | |
| ON31S4005 | HYUNDAI 210 | 19 | ||
| ON31P3015 | HYUNDAI 290 | 20 | 120 | |
| ON31S4006 | HYUNDAI 290 | 20 | ||
| ON31P3024 | HYUNDAI 360 | 25 | 150 | |
| ON31S4010 | HYUNDAI 360 | 25 |
