Part numbers, specifications and machine model numbers are for reference purposes.
| METALON NO | MAKİNE MODEL | ORJİNAL NO | ÜRÜN ADI |
| ON01T1005 | DOOSAN DX300 | 2713-1219 | KAZMA UCU |
| ON01A2002 | DOOSAN DX300 | 2713-1220 | ADAPTÖR |
| ON31P3018 | DOOSAN DX300 | PİM ( 22 X 110 ) | PİM |
| ON01T1009 | DOOSAN DX340 | 2713-0032 | KAZMA UCU |
| ON01A2004 | DOOSAN DX340 | 2713-0033 | ADAPTÖR |
| ON31P3020 | DOOSAN DX340 | PİM ( 23 X 130 ) | PİM |
| ON01T1011 | DOOSAN DX420 | 2713-1236 | KAZMA UCU |
| ON01A2005 | DOOSAN DX420-50mm | 2713-1237 | ADAPTÖR |
| ON31P3024 | DOOSAN DX420 | PİM ( 25 X 150 ) | PİM |

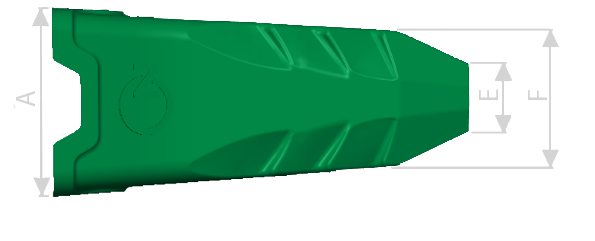

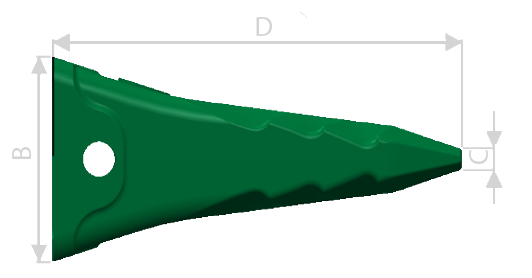

| METALON NO | MAKİNE MODEL | A | B | C | D | E | F |
| ON01T1005 | DOOSAN DX300 | 110 | 101 | 15 | 270 | 43 | 82 |
| ON01T1009 | DOOSAN DX340 | 132 | 121 | 16 | 325 | 42 | 97 |
| ON01T1011 | DOOSAN DX420 | 156 | 132 | 18 | 365 | 62 | 112 |

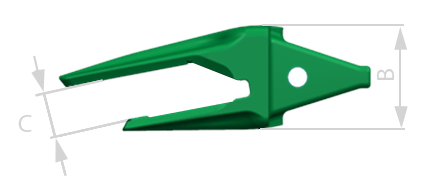

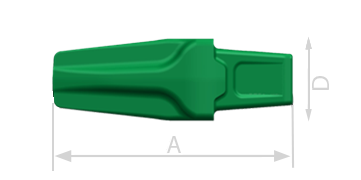

| METALON NO | MAKİNE MODEL | A | B | C | D |
| ON01A2003 | DOOSAN DX140 | 278 | 87 | 41 | 83 |
| ON01A2001 | DOOSAN DX225 | 320 | 101 | 42 | 96 |
| ON01A2002 | DOOSAN DX300 | 380 | 111 | 42 | 109 |
| ON01A2004 | DOOSAN DX340 | 390 | 130 | 52 | 128 |
| ON01A2005 | DOOSAN DX420-50mm | 435 | 144 | 44 | 146 |
| ON01A2006 | DOOSAN DX420-60mm | 435 | 144 | 65 | 146 |
| ON01A2007 | DOOSAN DX420-rampa | 435 | 144 | 65 | 146 |
| ON01A2150 | DOOSAN DX520-60mm | 510 | 174 | 65 | 153 |
| ON01A2008 | DOOSAN DX520-70mm | 510 | 174 | 75 | 153 |
| ON01A2009 | DOOSAN DX520-80mm | 510 | 174 | 85 | 153 |
| ON01A2010 | DOOSAN DX850 | 640 | 192 | 92 | 180 |
| ON01A2011 | DOOSAN DX850 |
| METALON NO | MAKİNE MODEL | A | B | C |
| ON31P3018 | DOOSAN DX300 | 22 | 110 | |
| ON31S4007 | DOOSAN DX300 | 22 | ||
| ON31P3020 | DOOSAN DX340 | 23 | 130 | |
| ON31S4008 | DOOSAN DX340 | 23 | ||
| ON31P3024 | DOOSAN DX420 | 25 | 150 | |
| ON31S4010 | DOOSAN DX420 | 25 |
