Part numbers, specifications and machine model numbers are for reference purposes.
| METALON NO | MAKİNE MODEL | ORJİNAL NO | ÜRÜN ADI |
| ON14T1022 | HMK 102 | 81010600 | MERKEZ KAZMA |
| ON14T1023 | HMK 102 | 81010630 | SAĞ KÖŞE KAZMA |
| ON14T1024 | HMK 102 | 81010640 | SOL KÖŞE KAZMA |
| ON32C5005 | HMK 102 | 5/8"X67 | CİVATA |
| ON32N6001 | HMK 102 | 5/8" | SOMUN |
| ON14T1025 | HMK 102 YT | HMK102YT | MERKEZ KAZMA |
| ON14T1026 | HMK 102 YT | HMK102YTR | SAĞ KÖŞE KAZMA |
| ON14T1027 | HMK 102 YT | HMK102YTL | SOL KÖŞE KAZMA |
| ON32C5003 | HMK 102 YT | 5/8"X57 | CİVATA |
| ON32C5005 | HMK 102 YT | 5/8"X67 | CİVATA |
| ON32N6001 | HMK 102 YT | 5/8" | SOMUN |

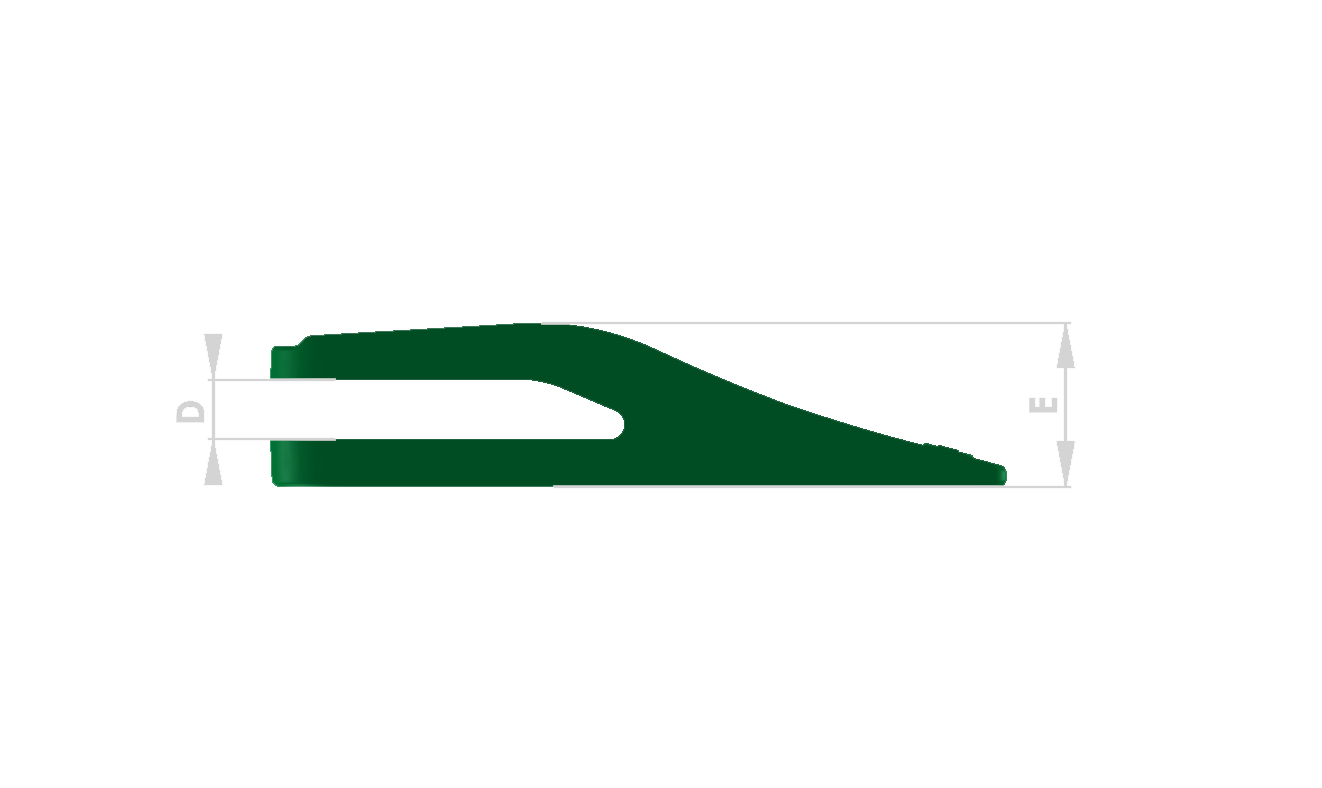

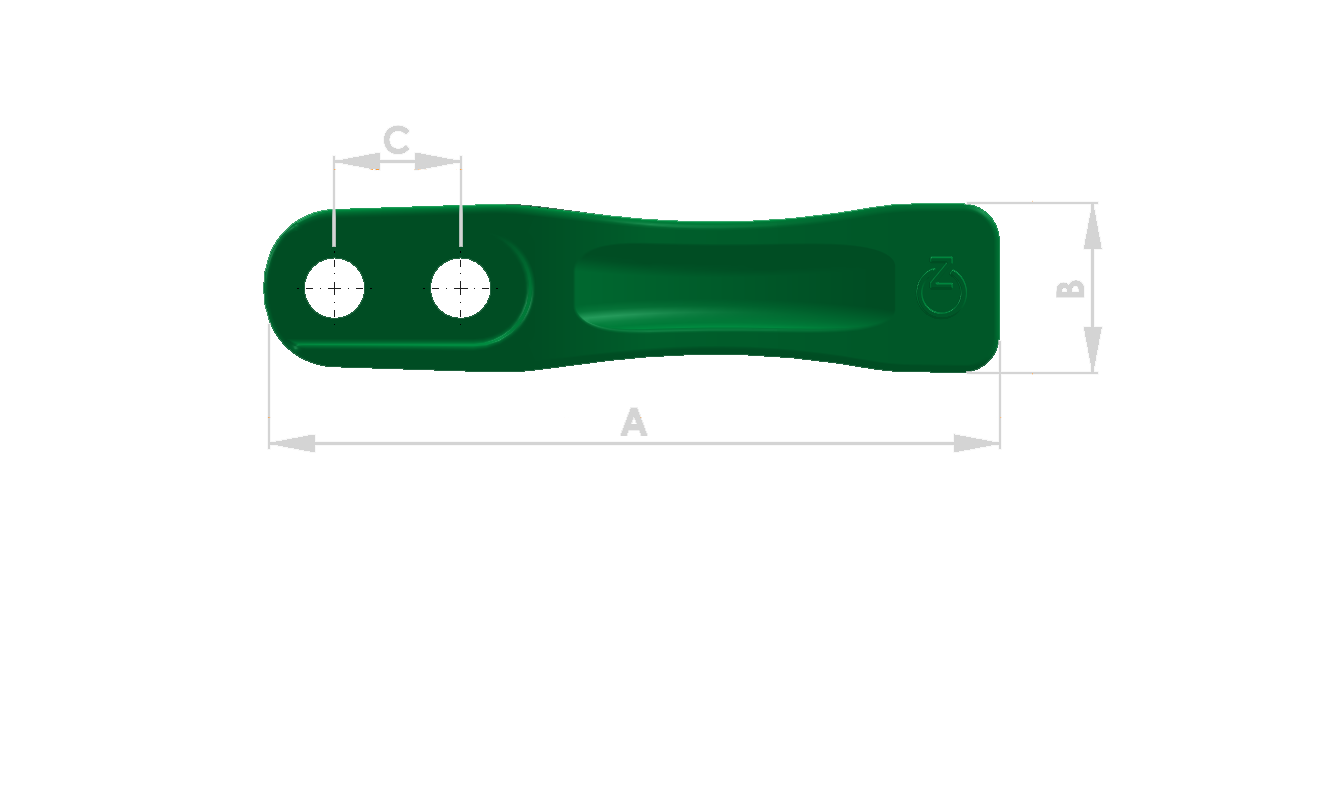

| METALON NO | MAKİNE MODEL | A | B | C | D | E |
| ON14T1022 | HMK 102 | 265 | 60 | 48 | 81 | 21 |
| ON14T1025 | HMK 102 YT | 265 | 55 | 48 | 63 | 21 |

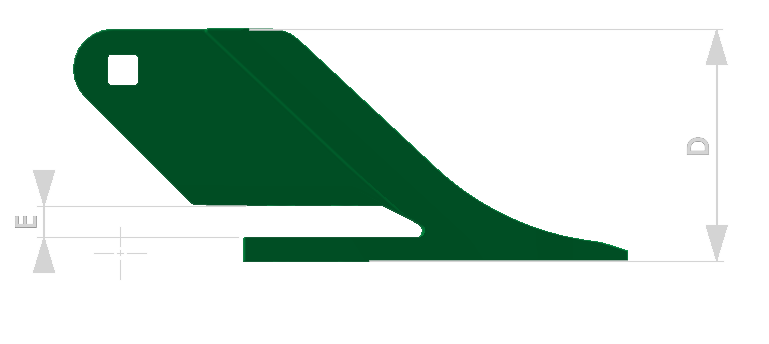

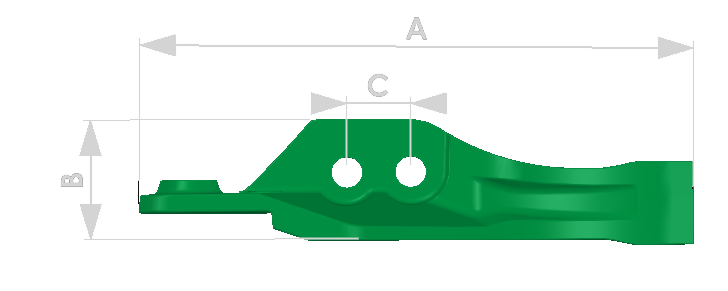

| METALON NO | MAKİNE MODEL | A | B | C | D | E |
| ON14T1023 | HMK 102 | 380 | 65 | 20 | 170 | 20 |
| ON14T1024 | HMK 102 | 380 | 65 | 20 | 170 | 20 |
| METALON NO | MAKİNE MODEL | A | B | C |
| ON32C5005 | HMK 102 | 67 | 15,88 | 12,3 |
| ON32C5003 | HMK 102 YT | 57 | 15,88 | 12,3 |
| ON32C5005 | HMK 102 YT | 67 | 15,88 | 12,3 |
